What's so great about our
HYBRID PLASTIC/METAL VALVES?
They're as strong as metal, tough & chemically resistant - but lighter!
Light enough for composite piping systems.
Strong enough for lined steel or alloy piping.
HYBRID VALVES have the advantages of both plastic and metal. These fluoropolymer lined composite valves have the chemical resistance and toughness of plastic along with the strength of metal. Internal steel elevates the valve pressure/temperature ratings above those of solid plastic valves. Valve linings are moulded PFA or PVDF. PFA resists almost all chemicals. PVDF has high abrasion resistance and resists permeation, important to many process applications.
Can replace other valves in-line - Standard “L” face-to-face dimensions are the same as other valves. The diaphragm valve "L" dimensions match Asahi
Easy to actuate - Valve top flanges and shaft dimensions are to ISO 5211 dimensions.
Maintenance is eliminated - There are no old-fashioned external adjustments. Seals are all self-adjusting. Diaphragm valve has a unique diaphragm design which eliminates the need to re-torque body bolts.
Fluoropolymer Lined Valves - The Advantages Of Both Plastic & Metal

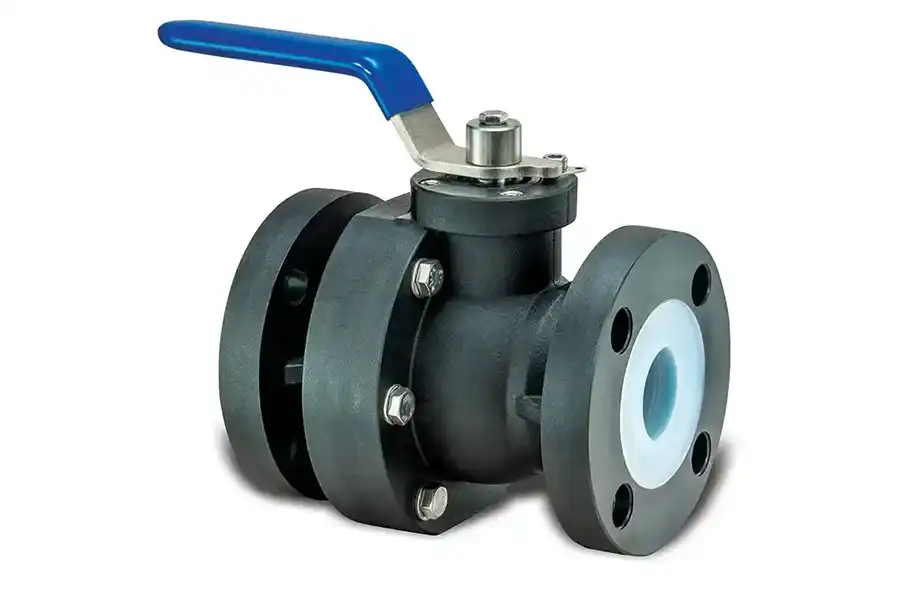

Ideal for Composite (FRP) Piping
HB Series is a competitively priced alternate to solid PVDF or solid composite flanged ball valves. They are perfect for composite pipes and their PFA lining handles virtually all aggressive chemicals.
HB Series Ball Valves
LEARN MORE

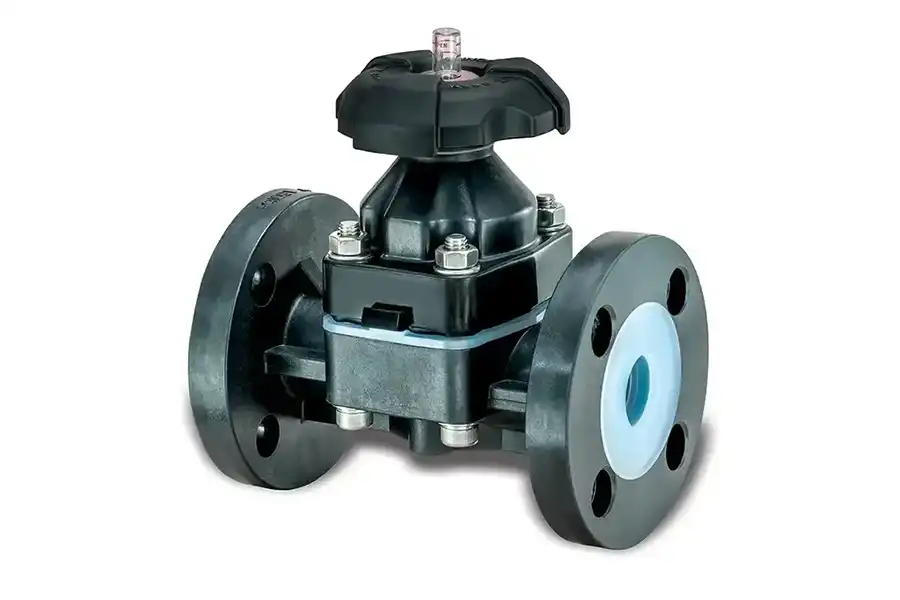

Can Replace Asahi PVDF Diaphragm Valves In-line
HD Series are fully PFA lined composite valves 1/2" to 6" with the same flange face-to-face length as Asahi Type 14. They can replace PVDF Asahi diaphragm valves in-line and are competitively priced.
HD Series Diaphragm Valves
LEARN MORE

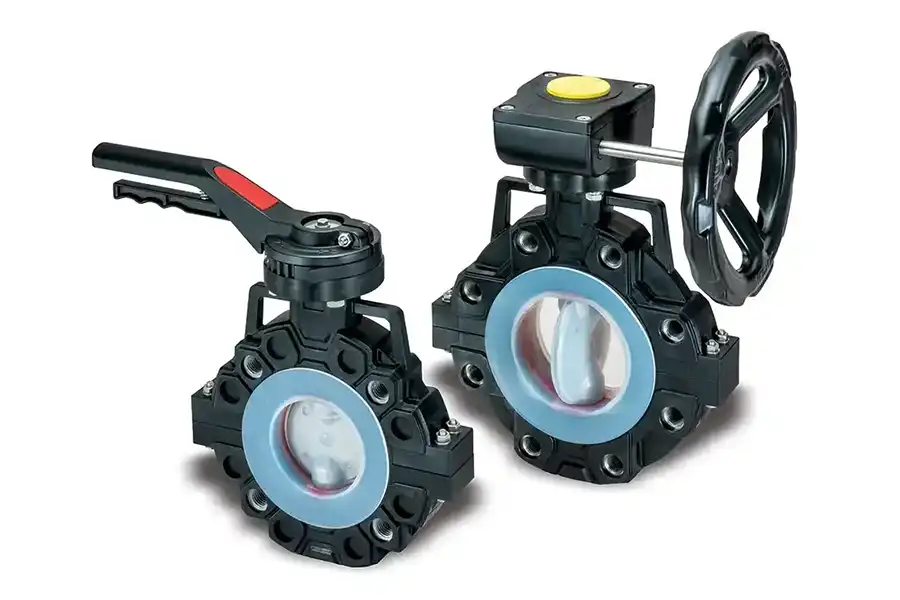

Wafer and Lug Body Butterflies up to 12", Fully PFA Lined
HY Series butterflies have standard face-to-face dimensions for easy replacement of corroded valves. The top flange has standard ISO dimensions for easy actuator mounting. They are perfect for composite pipes and their PFA lining handles virtually all chemicals.
HY Series Butterfly Valves
LEARN MORE
