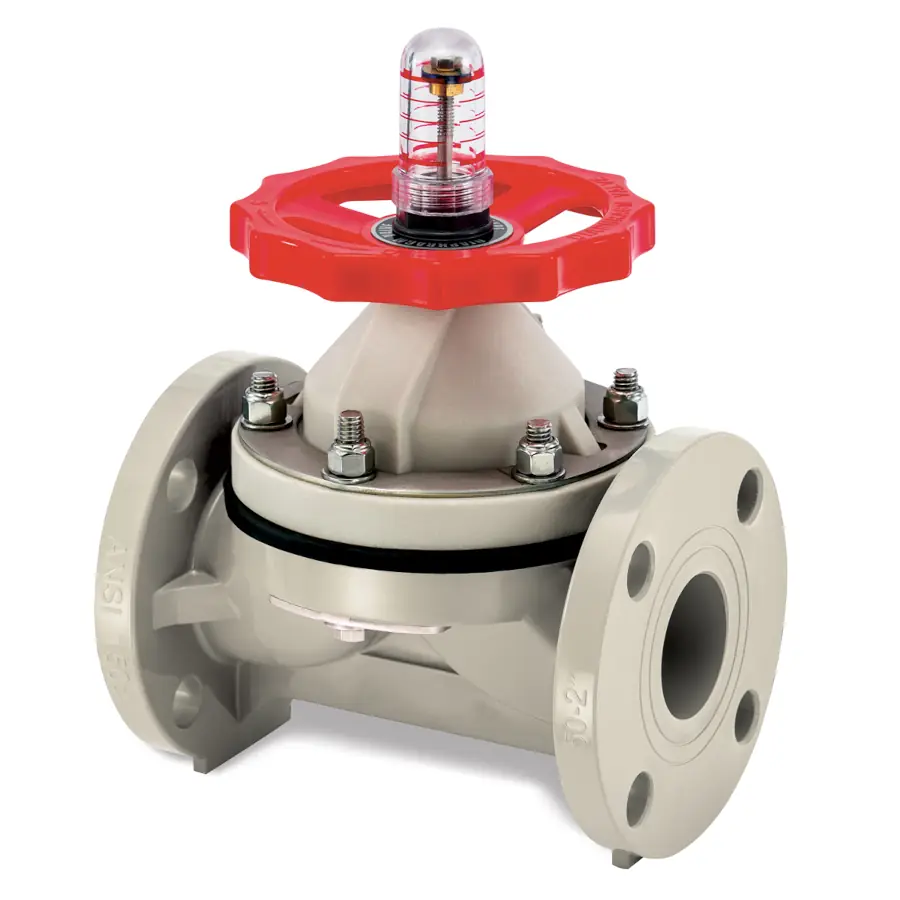

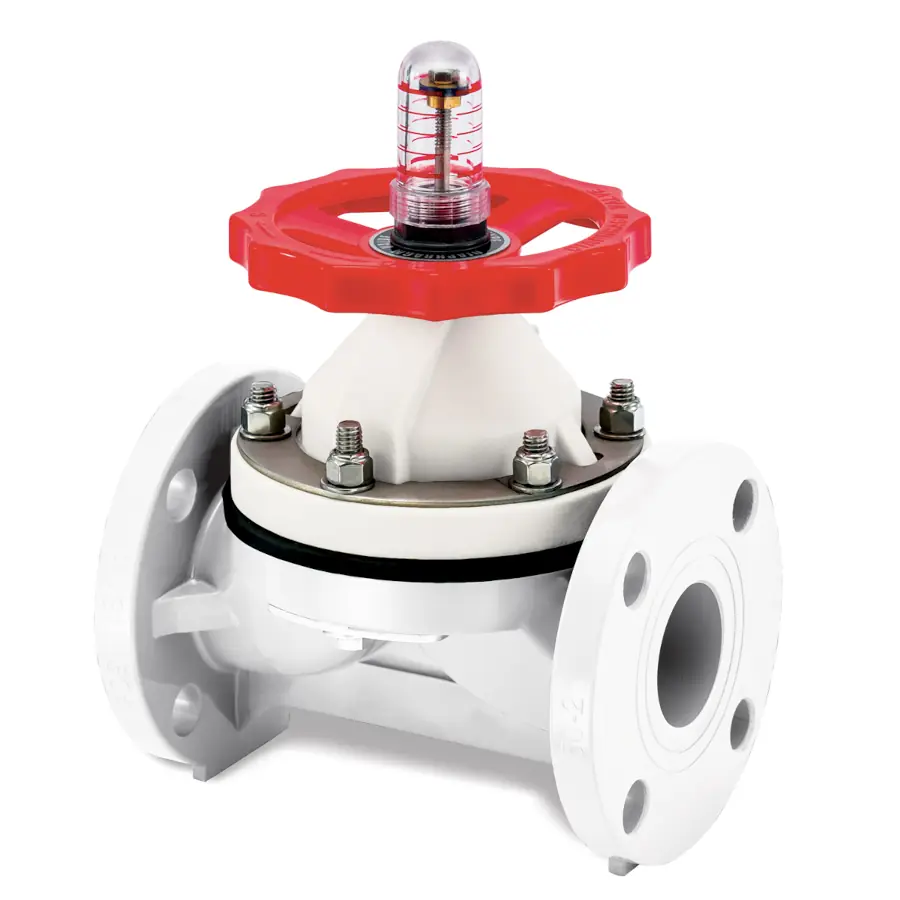

Diaphragm Valves – Type 16
Chemline Type 16 Diaphragm valves have a history of chemical plant applications. They stand up to internal and external corrosive services, as well as some abrasion. This is a good throttling valve, and is suited for slurries or viscous liquids. The self-draining design with no dead volume makes it suitable for sanitary and high purity applications.
1 Other diaphragm materials available special order
-
Size:1/2" to 10"
-
Ends:Flanged
-
Body:PVC, CPVC, PP, PVDF
-
Diaphragm Materials:EPDM, PTFE
1/2" to 10"
Flanged
PVC, CPVC, PP, PVDF
EPDM, PTFE
Features & Benefits
- Excellent Chemical Resistance
Large choice of materials including PVDF bodies and PTFE diaphragms for extremely aggressive services. - Externally Corrosion Resistant
All major parts are plastic.
Position indicator is covered and sealed.
Bonnet O-Ring protects internal metal parts from corrosive atmospheres. - Light Weight
Will not strain plastic piping.
Easily installed – 6” valve weighs only 57 lbs. - Outperform Metal Valves on Corrosive and Abrasive Services
No lining which may peel, crack or abrade away. - Easily Replace Corroded Metal Valves
Standard flange face-to-face dimensions.
