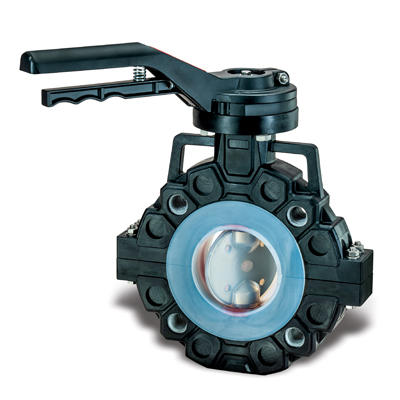

Hybrid PFA Lined Composite Butterfly Valves – HY Series

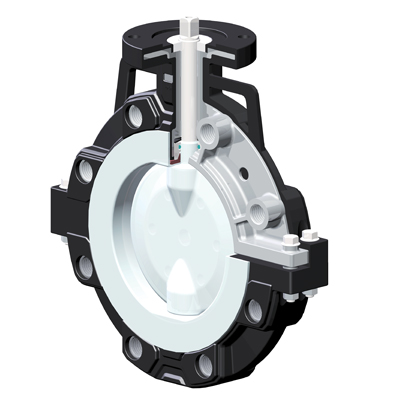

The Chemline HY Series HYBRID butterfly valve is a composite valve with a steel core fully lined with PFA. These valves have bubble tight shut off and are used for flow modulation. Chemical resistance of PFA opens this valve to the most aggressive chemical process applications. They are perfect for composite (fibreglass), alloy or lined steel piping. The plastic/metal hybrid construction offers the chemical resistance and toughness of plastic along with the strength of metal.
-
Size:3" to 12"
-
Body Type :Split Body, Wafer, Lug
-
Body:PPG, PPSG Composite
-
Disc:PFA Covered SS
-
Seats:PFA
-

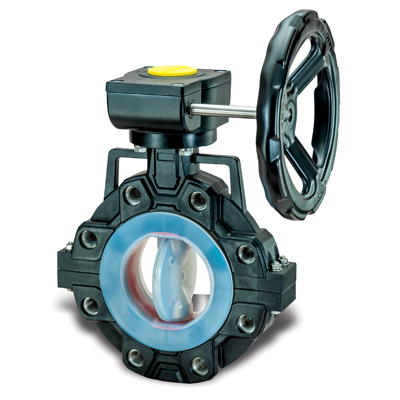

Operation:Manual, Electrically, Pneumatically Actuated
Features & Benefits
- High Working Temperatures
PPG valves maximum 266 degrees F (130 degress C)
PPSG valves maximum 320 degrees F (160 degrees C) - 150 psi Pressure Rated
See pressure/temperature graph - Corrosion Resistant Inside and Out
All inside wetted parts are fluoropolymer.
Valve exterior is composite. - For Composite Alloy and Lined Steel Piping
Light enough for composite piping systems.
Strong enough for alloy or lined steel piping. - Easy to Actuate
Valve top flange and shaft dimensions are to ISO 5211 dimensions.
Electric or pneumatic. actuator may be direct mounted without brackets and couplings.
