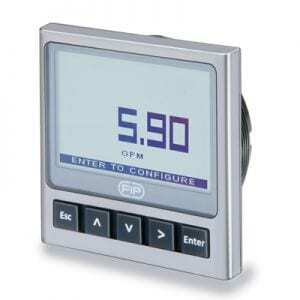

Flow Monitor/Transmitter – M9.02

M9.02 2-wire Flow Monitor/Transmitter
The M9.02 3/4-wire flow monitor/transmitter is designed to process the pulse signals from all FlowX3 Hall Effect flow sensors and magmeters. All units have a number of control outputs including 4 to 20 mA, Solid-State, and SPDT relays. They have full graphic backlit displays. The instrument supplies voltage to the flow sensors. The same instrument may be mounted in three different ways: directly to the flow sensor, remotely either panel or wall mounted. The standard configuration is panel mount.

  • Window Display:
    Polycarbonate
  • Panel & Wall Gasket:
    Silicone Rubber
  • Keypad:
    5-Button Silicone Rubber
  • Display:
    Liquid Crystal Full Graphic Display, White Backlight during standard conditions, Red Backlight in case a set alarm is activated, Green Backlight is case an external device control is activated
  • Display Readout:
    Flow Rate - 5 Digits, Resettable Total - 10 Digits, Non-Resettable Total - 10 Digits
  • Output Signals:
    1 x 4 - 20 mA (3/4-wire) and 2 solid-state relay, 1 SPDT Relay

Features & Benefits

  • Easy Set-up
  • Multi-colour back-light
  • Multi-language Menu
  • Connectable sensors:
    F3.0x Hall Effect Flow Sensors with frequency output, F6.60 Flow Magmeters, ULF Reed Effect Sensors
