Multi-Port Industrial Ball Valves – Type 23

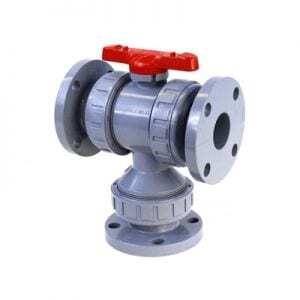

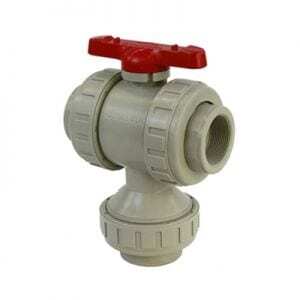

Chemline Type 23 Multiport Ball Valve has a vertical third port. It eliminates the need for two standard ball valves and a tee in many cases. A choice of flow patterns is available. L-Port is supplied standard.
-
Size:1/2" to 4"
-
Ends:Socket, Threaded, Butt, Flanged, ChemFlare™
-
Body:PVC, CPVC, PP, PVDF
-
Seats:PTFE
-
Seals:EPDM, FKM (VitonĀ®)
Features & Benefits
- Choice of Flow Patterns
- L-Port (standard) Ball: 180 Degree Operation
Bottom port common, with 3 positions, 2 flow patterns. - Double L-Port Ball: 90 Degree Operation
Bottom port common, with 3 positions, 3 flow patterns. - X-Port Ball:90 Degree or 180 Degree Operation
Either side port common, 3 or 4 positions, 4 flow patterns.
Technical Documents
Commonly used in these markets
Environmental
Process Industrial
Chemical, Storage & Transport
High Purity Water
Aquatic Life Support
