Multi-Port Industrial Ball Valves – Type 33

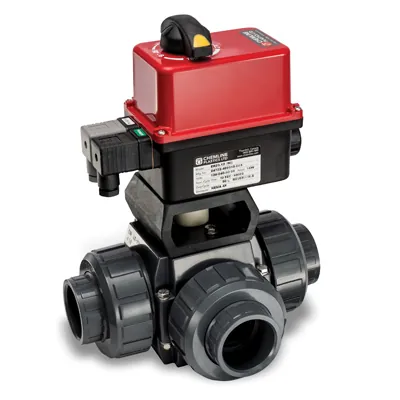

Chemline Type 33 Multiport is a full featured ball valve with a horizontal third port. It eliminates the need for two standard ball valves and a tee in many cases. The standard T-Port offers flow diversion as well as unobstructed straight through flow. For electric or pneumatic actuation, the optional L-Port ball diverts flow with 90 degree operation2
1 Butt ends in PVDF or ECTFE (Halar®) and butt or socket PP ends fuse to Chemline metric piping systems.
2 For operation with actuators, the L Port 90° operating ball is recommended.
-
Size:3/8" to 2"
-
Ends:Socket, Threaded, Flanged, Butt1
-
Body:PVC, PP, PVDF
-
Seats:PTFE
-
Seals:EPDM, FPM (Viton®)
Features & Benefits
- Fully Supported Ball
Four PTFE seats for smooth reliable operation. - Safety Lock Handle
Locks valve in each 90° position.
Lockable with a padlock
Handle turns only when trigger is squeezed. - Easy to Actuate2
Mounting kits are available. - 230 psi Working Pressure
- Fully Blocking
Union nuts on closed ports may be safely dissembled under pressure.
Commonly used in these markets
Environmental
Process Industrial
Chemical, Storage & Transport
High Purity Water
Aquatic Life Support
Irrigation & Fertigation
Pools, Water Parks
Utility Water
